Hand-E-Tap

Hand-E-Tap™ Series

Extreme Duty Programmable Switch

SMART SWITCH

Hand-E-Tap®, the first programmable, ADA compliant access button built with Essex Piezoelectric Switch Technology. This extremely rugged, vandal resistant switch is designed to operate in a variety of high use, harsh, interior or exterior, industrial and commercial environments. Easy to use for all users including the sight, hearing or physically impaired. Essex Billion Cycle Switch Technology allows the switch to be operated with a light tap on any area of the switch even with a gloved hand, elbow or cane.

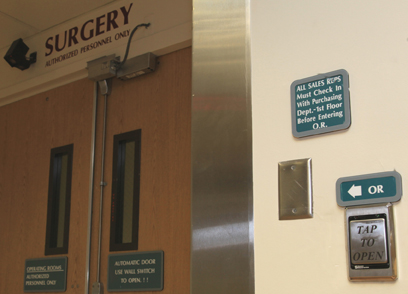

See how the Hand-E-Tap® provided a door control solution to a local hospital by visiting the Hand-E-Tap® Case Study.

The Essex Hand-E-Tap® Series

  • 1 SPDT Relay (Rated 8A at 30VDC, 125VAC)
  • Field Programmable Output: Toggle (On/Off) or Adjustable 1 to 60 Seconds
  • Stainless Steel Construction (316L)
  • Custom Graphics Available
  • ADA Compliant Switch

Essex Hand-E-Tap® switches can be used to control an automatic door, electric lock/strike or magnetic lock. They can also be used as a programmable switch in toggle mode to control an electrical device. Additional features include field programmable audio and LED control to provide switch activation feedback to the user. Laser marked graphics create an extremely durable mark which can be customized with text, logos or symbols. For custom marking options, contact Essex at 1-800-KEYLESS. Hand-E-Tap® is available with a Stainless Steel, Black or Finished bezel and backed by a limited lifetime warranty.

DISTRIBUTION

SMART SWITCH

Hand-E-Tap®, the first programmable, ADA compliant access button built with Essex Piezoelectric Switch Technology. This extremely rugged, vandal resistant switch is designed to operate in a variety of high use, harsh, interior or exterior, industrial and commercial environments. Easy to use for all users including the sight, hearing or physically impaired. Essex Billion Cycle Switch Technology allows the switch to be operated with a light tap on any area of the switch even with a gloved hand, elbow or cane.

See how the Hand-E-Tap® provided a door control solution to a local hospital by visiting the Hand-E-Tap® Case Study.

The Essex Hand-E-Tap® Series

  • 1 SPDT Relay (Rated 8A at 30VDC, 125VAC)
  • Field Programmable Output: Toggle (On/Off) or Adjustable 1 to 60 Seconds
  • Stainless Steel Construction (316L)
  • Custom Graphics Available
  • ADA Compliant Switch

Essex Hand-E-Tap® switches can be used to control an automatic door, electric lock/strike or magnetic lock. They can also be used as a programmable switch in toggle mode to control an electrical device. Additional features include field programmable audio and LED control to provide switch activation feedback to the user. Laser marked graphics create an extremely durable mark which can be customized with text, logos or symbols. For custom marking options, contact Essex at 1-800-KEYLESS. Hand-E-Tap® is available with a Stainless Steel, Black or Brass Finished bezel and backed by a limited lifetime warranty.

REQUEST INFO

DOWNLOADS

VIDEOS

DISTRIBUTION

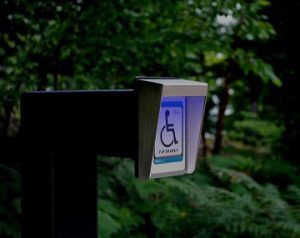

Illuminated Spy Proof Housing

For areas with low ambient lighting, the Illuminated Spy Proof Housing provides cool blue illumination and serves to limit the view of an unwelcome onlooker. Available exclusively for the Essex 12 pad 3×4 Keypad or Hand-E-Tap® Access Switch, the Illuminated Spy Proof Housing requires a 5 or 12-volt independent power supply. (Power supply not included) The Stainless Steel Spyproof Housing is also available in a non-illuminated version. An angled mounting BackBox is also available for surface mount installations.
