Elevator Keyless Entry Systems

For over 25 years, Essex Electronics has designed and manufactured Keyless Entry Access Control Systems for the elevator industry. These innovative systems are used to control access by requiring the user to enter an access code at a keypad (or present a proximity card) before a call can be registered.

Applications include:

  • Inside the car – Restricts access to private floors
  • At a landing – Restricts access to the car
  • In hospitals – To initiate “Code Blue” emergency service
  • In nursing facilities – to protect patients
  • In luxury condominiums – For Condo Control

Essex Keyless Entry systems provide dry contact outputs which can easily interface with nearly any type of elevator call circuits. From a simple one landing to a low rise elevator serving up to 6 floors, Essex has an access control solution to fill most elevator security requirements. Essex products for elevator applications carry a 2-year limited warranty.

For elevator applications, Essex Electronics offers these CSA approved systems:

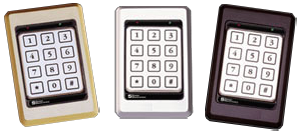

SKE-34SE

Multiple User, Self Contained Access Control Keypads

The SKE-34SE provides cost-effective, self-contained elevator access control of one landing for many individual users. As a self-contained system, all electronics are contained inside the keypad. Easy to install and operate, all programming is performed through the Keypad.

  • 500 User Codes
  • 1 SPDT Relay Output (2A @ 24V max)
  • Two Auxiliary Open Collector ¼ A grounding outputs
  • 5VDC or 12-24VDC Input/Output
  • Keypad Programmable
  • Keyless Throwover

SKE-34SE for more information

The SKE-34SE Series is CSA listed for Elevator Access Control (CSA B44.1/ASME 17.5)

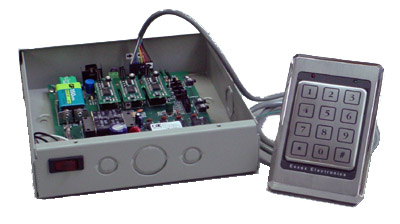

KE-1000

1000w

Mark 3

The KE-1000 Mark 3 provides reliable access control on a new or existing low rise elevator serving up to 6 floors. The KE-1000 Mark 3 systems are commonly referred to as "self-managing" systems. Not only are they convenient to use but the KE-1000 simplifies code maintenance by allowing access codes to be changed right from the touchpad.

  • 5 Access Codes per Output
  • Keyless Throwover (Latching) or Momentary Outputs

KE-1000 Mark 3 Series for more information

For over 25 years, Essex Electronics has designed and manufactured Keyless Entry Access Control Systems for the elevator industry. These innovative systems are used to control access by requiring the user to enter an access code at a keypad (or present a proximity card) before a call can be registered.

Applications include:

  • Inside the car – Restricts access to private floors
  • At a landing – Restricts access to the car
  • In hospitals – To initiate “Code Blue” emergency service
  • In nursing facilities – to protect patients
  • In luxury condominiums – For Condo Control

Essex Keyless Entry systems provide dry contact outputs which can easily interface with nearly any type of elevator call circuits. From a simple one landing to a low rise elevator serving up to 6 floors, Essex has an access control solution to fill most elevator security requirements. Essex products for elevator applications carry a 2-year limited warranty.

For elevator applications, Essex Electronics offers these CSA approved systems:

SKE-34SE

Multiple User, Self Contained Access Control Keypads

The SKE-34SE provides cost-effective, self-contained elevator access control of one landing for many individual users. As a self-contained system, all electronics are contained inside the keypad. Easy to install and operate, all programming is performed through the Keypad.

  • 500 User Codes
  • 1 SPDT Relay Output (2A @ 24V max)
  • Two Auxiliary Open Collector ¼ A grounding outputs
  • 5VDC or 12-24VDC Input/Output
  • Keypad Programmable
  • Keyless Throwover

Features/Specifications

SKE-34SE for more information

The SKE-34SE Series is CSA listed for Elevator Access Control (CSA B44.1/ASME 17.5)

KE-1000

Mark 3

The KE-1000 Mark 3 provides reliable access control on a new or existing low rise elevator serving up to 6 floors. The KE-1000 Mark 3 systems are commonly referred to as "self-managing" systems. Not only are they convenient to use but the KE-1000 simplifies code maintenance by allowing access codes to be changed right from the touchpad.

  • 5 Access Codes per Output
  • Keyless Throwover (Latching) or Momentary Outputs

KE-1000 Mark 3 Series for more information
