SKE Series

KEYLESS CONVENIENCE

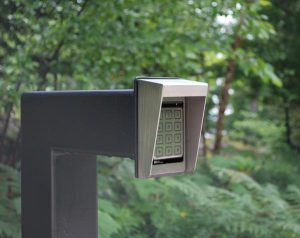

The SKE Series is a heavy duty, multiple user, self-contained Access Control Keypad with features suitable for most residential, small commercial and industrial access control applications. With a 2A relay on board, simply add power (5VDC or 12 to 24VDC) and the SKE Series is ready to provide dependable access control. Rugged Stainless Steel construction and proprietary Piezoelectric Billion Cycle Switch Technology ensures superior performance in any environment (heat, rain, snow, ice -up to ⅜”). The SKE Series is backed by a limited lifetime warranty.

  • Self Contained Access Control
  • Professional Grade Piezo Keypad
  • Easy to install and operate
  • Up to 500 User Codes
  • 3 Programmable Outputs
  • Lower Cost Self Contained Design
  • Weatherproof -40°C to +70°C
  • Waterproof 100% Relative Humidity
  • Mullion or Single Gang

Easily programmable through the Keypad, the SKE Series features up to 502 Codes (1 Master, 500 User and 1 Temporary) and 3 Programmable Outputs (1 SPDT Relay rated at 2A at 24V max and 2 Open Collector ¼ A max to ground). The SKE-34 and SKE-26 can be used to control a fail-safe or fail secure electric locking device. They can also be used to control a garage door or electric gate. Two ¼ A grounding outputs are available which can drive a relay (separate relays required) to open a second door, trigger a CCTV or doorbell or control an auxiliary device.

RUGGED READER

The SKE Series is a heavy duty, multiple user, self-contained Access Control Keypad with features suitable for most residential, small commercial and industrial access control applications. With a 2A relay on board, simply add power (5VDC or 12 to 24VDC) and the SKE Series is ready to provide dependable access control. Rugged Stainless Steel construction and proprietary Piezoelectric Billion Cycle Switch Technology ensures superior performance in any environment (heat, rain, snow, ice -up to ⅜”). The SKE Series is backed by a limited lifetime warranty.

  • Self Contained Access Control
  • Professional Grade Piezo Keypad
  • Easy to install and operate
  • Up to 500 User Codes
  • 3 Programmable Outputs
  • Lower Cost Self Contained Design
  • Weatherproof -40°C to +70°C
  • Waterproof 100% Relative Humidity
  • Mullion or Single Gang

Easily programmable through the Keypad, the SKE Series features up to 502 Codes (1 Master, 500 User and 1 Temporary) and 3 Programmable Outputs (1 SPDT Relay rated at 2A at 24V max and 2 Open Collector ¼ A max to ground). The SKE-34 and SKE-26 can be used to control a fail-safe or fail secure electric locking device. They can also be used to control a garage door or electric gate. Two ¼ A grounding outputs are available which can drive a relay (separate relays required) to open a second door, trigger a CCTV or doorbell or control an auxiliary device.
