KEYPAD/ CARD READERS/ COMBINATION
Over the past 40 years, Essex heavy duty access control Readers have become the choice of security professionals worldwide. Whether installed in extreme climate conditions or inside a building, Essex readers are unsurpassed in their ability to tolerate virtually any environment. Designed to interface with most OEM access control panels, Essex offers the following readers:
KEYPAD READERS

Utilizing a proprietary Billion Cycle Switch Technology™, Essex state of the art, piezoelectric keypads outperform all other keypads (membrane, conductive rubber, mechanical and even other piezoelectric keypads) in indoor, outdoor, harsh and high use applications.
Essex Keypad Readers provide industry standard outputs including 26 Bit Wiegand, 8 Bit Word, Serial ASCII, and RS-485. Compatible with most access control panels or industrial process control equipment, Essex can also provide custom outputs for specific OEM applications.
The Essex Thinline 2x6

The Essex Thinline 2×6 is a narrow style, weatherproof, piezoelectric Keypad designed for mullion mount applications. Graphic overlay finishes include stainless steel or black illuminated.
K1 Series – All in One/Multi-Format Keypad Readers
KTP Series – Single Output Keypad Reader (26 Bit Wiegand, 8 Bit, RS-485)
The Essex 12-Pad 3x4

The Essex 12 Pad 3×4 is a virtually indestructible, piezoelectric Keypad designed to mount to a U.S. single gang switch box. Constructed of stainless steel, the robust design of the 12 Pad 3×4 puts this keypad in a class of its own. It has no moving parts to fail or wear out. Laser marked Keypad graphics withstands wear from high use and harsh environments (i.e. oil, grease, bleach, JA Jetfuel). Graphics can be customized per customer requirements.
K1 Series – All in One/Multi-Format Keypad Readers
KTP Series – Single Output Keypad Reader (26 Bit Wiegand, 8 Bit, RS-485)
RFID CARD READERS

Compatible with most OEM access control panels, Essex rugged card readers provide superior performance in vandal prone areas and extreme climate conditions. Essex card readers built exclusively with Genuine HID Technology™ are available with 125kHz HID Proximity and 13.56MHz iCLASS SE®. Reads credentials (cards and fobs) up to 64 bits (91 for standard RoxProx™ and RoxProx II™) including 26 Bit Wiegand open format.

iRox™ Series

iRox™ and iRoxPlus™ are heavy duty smart card readers built with Genuine HID Technology™. Built to last, these IP66 rated readers incorporate stainless steel construction, epoxy encapsulated electronics, audiovisual feedback, and modern low profile design. iRox™ features iCLASS SE® which is capable of reading all HID 13.56MHz high-frequency formats. iRox™ Plus with MultiCLASS SE® adds 125kHz Proximity for dual frequency installations.
- iClass SE® and MultiCLASS SE®
- All Weather IP66 Rated
- Stainless Steel Construction
- Vandal Resistant Design
- Genuine HID Technology™
- Up to 4 inch Read Range
- Mullion or Single Gang
- Customizable Graphics
For more information, visit iRox™ Series




iRox™ Series

iRox™ and iRoxPlus™ are heavy duty smart card readers built with Genuine HID Technology™. Built to last, these IP66 rated readers incorporate stainless steel construction, epoxy encapsulated electronics, audiovisual feedback, and modern low profile design. iRox™ features iCLASS SE® which is capable of reading all HID 13.56MHz high-frequency formats. iRox™ Plus with MultiCLASS SE® adds 125kHz Proximity for dual frequency installations.
- iClass SE® and MultiCLASS SE®
- All Weather IP66 Rated
- Stainless Steel Construction
- Vandal Resistant Design
- Genuine HID Technology™
- Up to 4 inch Read Range
- Mullion or Single Gang
- Customizable Graphics
For more information, visit iRox™ Series




RoxProx™

RoxProx™ is a heavy duty, low profile 125kHz Proximity Access Control Reader designed for all environments including extreme climate conditions and vandal prone areas. This rugged, all-weather (IP66 Rated) Proximity Card reader features stainless steel construction, epoxy encapsulated electronics and Genuine HID Technology™.
- Superior Vandal Resistance
- ⅛” Stainless Steel Construction
- All Weather IP66 Rated Design
- Reads 125kHz proximity cards and fobs
- Wiegand Output (up to 91 bits)
- Up to 2 inch Read Range
- Mullion or Single Gang Versions
- Globe Design (Blue/Green Illumination) or RFID Card Design (Red/Green)
- Customizable Graphics
For more information, visit RoxProx™
RoxProx™

RoxProx™ is a heavy duty, low profile 125kHz Proximity Access Control Reader designed for all environments including extreme climate conditions and vandal prone areas. This rugged, all-weather (IP66 Rated) Proximity Card reader features stainless steel construction, epoxy encapsulated electronics and Genuine HID Technology™.
- Superior Vandal Resistance
- ⅛” Stainless Steel Construction
- All Weather IP66 Rated Design
- Reads 125kHz proximity cards and fobs
- Wiegand Output (up to 91 bits)
- Up to 2 inch Read Range
- Mullion or Single Gang Versions
- Globe Design (Blue/Green Illumination) or RFID Card Design (Red/Green)
- Customizable Graphics
For more information, visit RoxProx™
RoxProx II™

RoxProx II™ is a heavy duty, low profile 125kHz Proximity Access Control Reader designed for all indoor and outdoor environments. RoxProx II™ features stainless steel construction, epoxy encapsulated electronics, customizable graphics, and Genuine HID Technology™. Built to withstand the harshest environments yet attractively designed to complement any decor.
- Superior Vandal Resistance
- ⅛” Stainless Steel Construction
- All Weather IP66 Rated
- Genuine HID Technology™
- Reads 125kHz proximity cards and fobs
- Wiegand Output (up to 91 bits)
- Up to 4 inch Read Range
- Mullion or Single Gang
- Stainless or Black Finish
- Customizable Graphics
For more information, visit RoxProx II™

RoxProx II™

RoxProx II™ is a heavy duty, low profile 125kHz Proximity Access Control Reader designed for all indoor and outdoor environments. RoxProx II™ features stainless steel construction, epoxy encapsulated electronics, customizable graphics, and Genuine HID Technology™. Built to withstand the harshest environments yet attractively designed to complement any decor.
-
- Superior Vandal Resistance
- ⅛” Stainless Steel Construction
- All Weather IP66 Rated Design
- Genuine HID Technology™
- Reads 125kHz proximity cards and fobs
- Wiegand Output (up to 91 bits)
- Up to 4 inch Read Range
- Mullion or Single Gang
- Stainless or Black Finish
- Customizable Graphics
For more information, visit RoxProx II™

RoxProx™ IP Series

RoxProx™ IP Series Proximity Readers are extremely rugged (RFID) communication devices designed specifically for vandal prone areas and harsh environments. IP65 and IK 10 rated, these 125kHz Wiegand proximity readers feature stainless steel construction, epoxy encapsulated electronics and Genuine HID Technology™ in a tamper resistant, low profile design.
- 125kHz RFID Proximity
- Genuine HID Technology™
- IK 10 Rated Impact Resistance
- IP65 Rated Ingress Protection
- Ethernet Communication
- Power Over Ethernet (PoE)
- Firmware Upgradable Over Ethernet
- Programmable Audio & Visual Indicators
- Mullion (Flush Mount/Surface Mount) or Single Gang Versions
- Up to 2 inch Read Range
- Built-In Switch Monitoring
- Superior Vandal Resistance
- ⅛” Stainless Steel Construction
- Customizable Graphics
For more information, visit RoxProx™ IP Series


RoxProx™ IP Series

RoxProx™ IP Series Proximity Readers are extremely rugged (RFID) communication devices designed specifically for vandal prone areas and harsh environments. IP65 and IK 10 rated, these 125kHz Wiegand proximity readers feature stainless steel construction, epoxy encapsulated electronics and Genuine HID Technology™ in a tamper resistant, low profile design.
- 125kHz RFID Proximity
- Genuine HID Technology™
- IK 10 Rated Impact Resistance
- IP65 Rated Ingress Protection
- Ethernet Communication
- Power Over Ethernet (PoE)
- Firmware Upgradable Over Ethernet
- Programmable Audio & Visual Indicators
- Mullion (Flush Mount/Surface Mount) or Single Gang Versions
- Up to 2 inch Read Range
- Built-In Switch Monitoring
- Superior Vandal Resistance
- ⅛” Stainless Steel Construction
- Customizable Graphics
For more information, visit RoxProx™ IP Series


COMBINATION KEYPAD/ CARD READERS

Compatible with most access control panels, Essex dual technology readers combine an Essex Piezoelectric Keypad with HID Proximity or iCLASS™. Suitable for all indoor and outdoor applications, Essex combination Keypad/Card readers are designed for higher security installations where a dual method of identification is required.

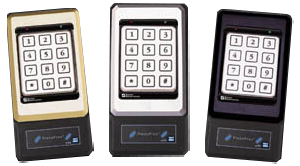

PiezoProx®

PiezoProx® is a dual technology reader which incorporates an Essex Stainless Steel, piezoelectric Keypad with an HID industry standard 125kHz proximity reader. With a read range of up to 5″, PiezoProx® provides superior reader performance in virtually any environment.
- 26 Bit Wiegand or 8 Bit Word Piezoelectric Keypad
- Reads 125kHz HID Proximity cards and fobs
- Up to 5 inch Read Range
- Stainless Steel Construction
- Weatherproof Design IP66
- Customizable Graphics
For more information, visit PiezoProx®

iSmart SE™

iSMART SE™ is a virtually destructible dual technology access control reader which incorporates an Essex Piezoelectric Keypad with a 13.56MHz iCLASS SE® card reader with Genuine HID Technology™. Compatible with most access control systems, iSMART SE™ provides PIN and/or Card identification for secured environments requiring dual factor authentication.
- K1 Series Keypad: 26 Bit Wiegand, 8 Bit
- Reads 13.56MHz Credentials including HID Seos®
- Up to 3 inch read range
- Stainless Steel Construction
- IP66 Weather and ligature resistant Design
For more information, visit iSMART SE™

T-Prox™

T-Prox™ is a dual technology access control reader which combines an Essex Thinline 2×6 Keypad with HID 125kHz Proximity. T-Prox™ is designed to interface with an OEM Access control panel. T-Prox™ transmits 125kHz Wiegand data (up to 91 bits) from the card reader and can be configured in the field to provide the following Industry Standard Outputs:
- 26 Bit Wiegand
- 8 bit Word
- 4 Bit Word
For more information, visit T-Prox™
